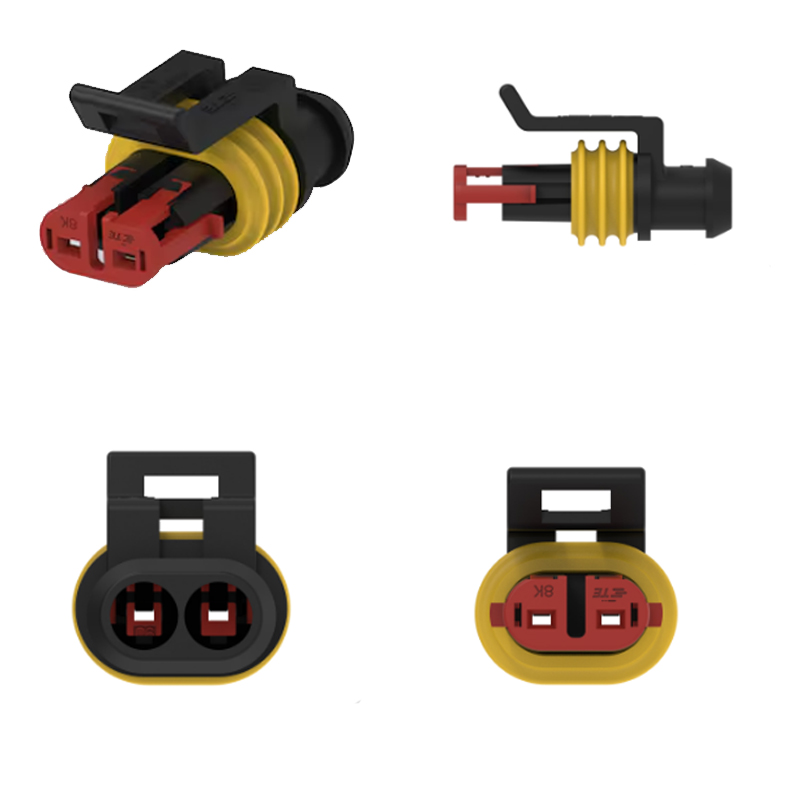

282080-1 Automotive Connectors 2P RECEPTACLE

282080-1 Automotive Connectors 2P RECEPTACLE

Category

282080-1

12 V / 24 V / 48 V, 2 Position, Automotive Housing for Female Terminals, Wire-to-Wire, 6 mm [.236 in] Centerline, Sealable, AMP Superseal 1.5mm Series

Product Type Features

  • Connector Shape :Rectangular
  • Mixed & Hybrid Connector :No
  • Connector & Housing Type :Housing for Female Terminals
  • Sealable :Yes
  • Primary Locking Feature :Integrated in Housing
  • Connector System :Wire-to-Wire
  • Connector & Contact Terminates To :Wire & Cable

Configuration Features

  • Number of Positions :2
  • Number of Rows :1

Electrical Characteristics

  • Operating Voltage (VDC):24
  • Nominal Voltage Architecture (V):12 | 24 | 48

Body Features

  • Cable Exit Angle (°):180
  • Primary Product Color :Black
  • Connector & Keying Code :Neutral

Contact Features

  • Contact Type :Receptacle
  • Contact Size :1.5mm
  • Mating Tab Width :1.5 mm [ .059 in ]
  • Contact Current Rating (Max) (A):14
