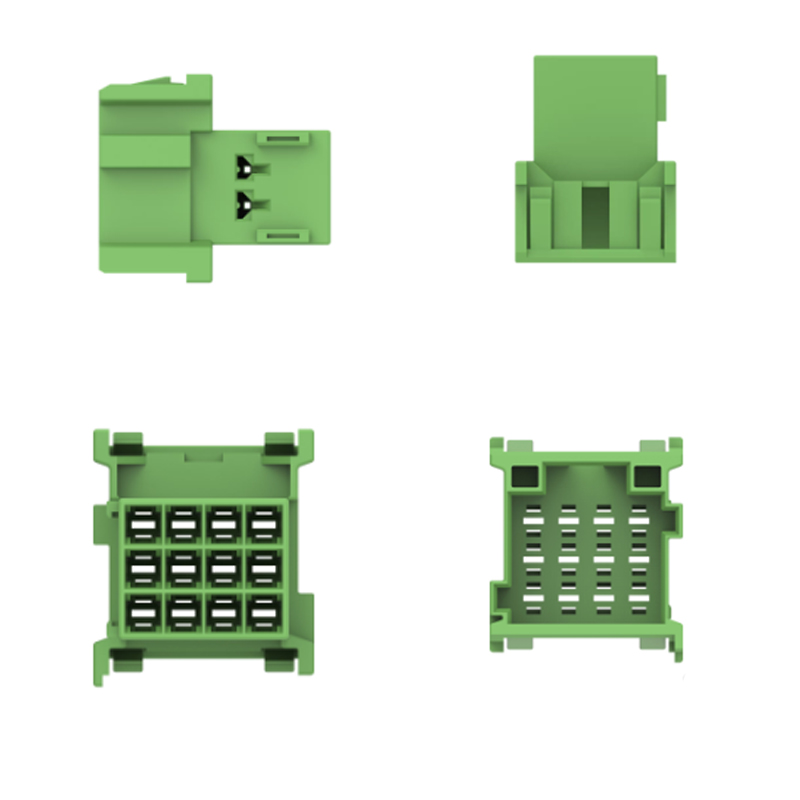

1-967627-1 Automotive Connectors 12P 2TAB PLUG YW/GR CONNECTOR HOUSING

1-967627-1 Automotive Connectors 12P 2TAB PLUG YW/GR CONNECTOR HOUSING

TE Internal #: 1-967627-1
TE Internal Description: FLA-STE-GEH2,8 12P
Nominal Voltage Architecture (V): 12 | 24
Connector & Housing Type : Housing for Male Terminals
Number of Positions : 12
Sealable : No
Operating Temperature Range : -40 – 120 °C [ -40 – 248 °F ]

Category

1-967627-1

12 V / 24 V, 12 Position, Automotive Housing for Male Terminals, Wire-to-Wire, 5 mm [.197 in] Centerline, Green, Wire & Cable, Power, Hybrid

Product Type Features

  • Connector Shape :Rectangular
  • Mixed & Hybrid Connector :No
  • Connector & Housing Type :Housing for Male Terminals
  • Sealable :No
  • Primary Locking Feature :Integrated in Housing
  • Connector System :Wire-to-Wire
  • Connector & Contact Terminates To :Wire & Cable

Configuration Features

  • Number of Positions :12
  • Number of Rows :3

Electrical Characteristics

  • Operating Voltage (VDC):28
  • Nominal Voltage Architecture (V):12 | 24

Body Features

  • Cable Exit Angle (°):180
  • Primary Product Color :Green
  • Connector & Keying Code :A

Contact Features

  • Contact Type :Tab
  • Contact Size :2.8mm
  • Mating Tab Width :2.8 mm [ .11 in ]
